Vanguard Straight Twist Brackets are manufactured from 40mm x 8mm steel bar, galvanised after manufacture to BS EN ISO 1461 to offer weather protection for up to 25 years

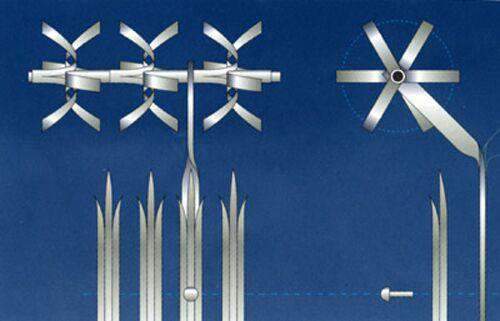

The Straight Twist Bracket is ideal for securing the Vanguard Rotating Anti Climb System over fences, walls and gates.

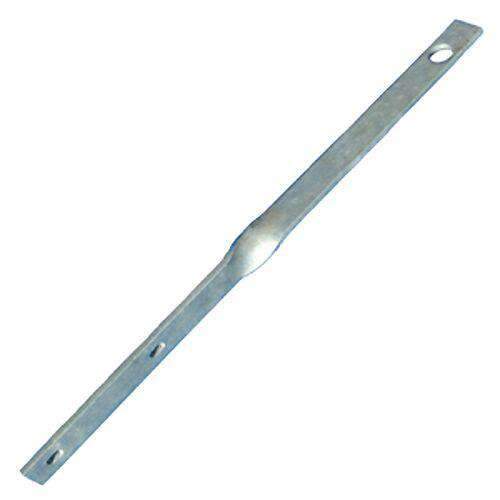

This bracket features a 90 degree twist approximately half way up its length with a hole at the end to accommodate a Vanguard Central Shaft.

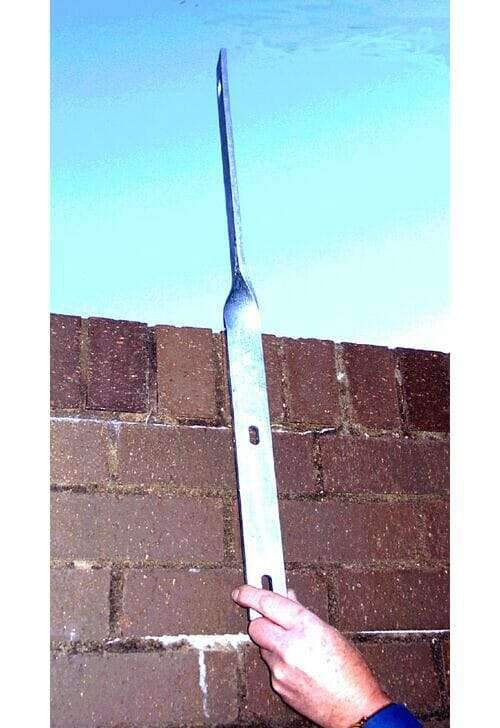

The lower leg section of the bracket features 2 Nr. fixing slots to accommodate 8mm fixings to the face of the wall, etc.

Optional Extras:

Fixings – Brackets are supplied without fixings as different applications or materials to be fixed to will require different types of fixings. We do however offer a range of fixings which can be ordered separately.


Colour Finish Available – as a chargeable optional extra, Brackets can be over painted in any standard RAL colour – with a baked on powder coat paint. Typically painting lead-time is 7-10 days, although we may be able to achieve a faster turnaround for urgent requirements – call for details and prices; 01273 475500

See below an example of black overpainting on one of our historic building Vanguard installations

Need help choosing your Vanguard components? –

Call our friendly experts if you`d like any help or advice to ensure that you order everything you need, or to discuss the best options for your application;

Tel: 01273 475500 (Mon-Fri 09.00-17.30 hrs)
